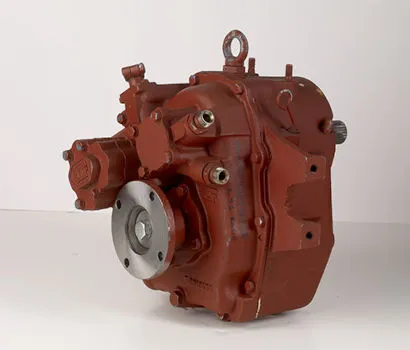

MG-5075SC
Power range, kW
186 - 455
Weight, kg
123
Specifications
Input Ratings
| Reduction Ratios | Pleasure Craft | Light Duty | Intermediate Duty | Intermediate Duty | Continuous Duty | ||||||
| :1 | @ 2500 RPM | @ 2300 RPM | @ 2100 RPM | @ 1800 RPM | @ 1800 RPM | ||||||
0.80, 0.92, 1.00 1.16 | 410 kW (550 hp) | 355 kW (476 hp) | 268 kW (360 hp) | 205 kW (275 hp) | 186 kW (249 hp) | ||||||
1.06, 1.33, 1.53 1.77, 2.05 | 455 kW (610 hp) | 368 kW (493 hp) | 283 kW (380 hp) | ||||||||
| 2.53 | 410 kW (550 hp) | 355 kW (476 hp) | 268 kW (360 hp) | ||||||||
| 2.88 | 403 kW (540 hp) | 348 kW (467 hp) | 261 kW (350 hp) |
Dimensions and weight
| C | 15 mm (0.59”) |
| S | 178 mm (7.00”) |
| F | 373 mm (14.68”) |
| L | 254 mm (10.00”) |
| R | 254 mm (10.00”) |
| Weight | 123 kg |
